VFD Motor Rack And Pinion Elevator , Construction Site Lift Max Lifting Height 0–46 M/Min

Name: VFD Motor Rack And Pinion Elevator Construction Site Lift Max Lifting Height 046 MMin
Brand: KANGBO
Price: 1 USD

Brand Name : KANGBO

Model Number : Rack and pinion hoist SC320(BZ) KP-B17 SC320/320(BZ) KP-B18

Certification : TUV

Place of Origin : CHINA

MOQ : 1 set

Price : in USD

Payment Terms : T/T, L/C

Supply Ability : 150 sets per month

Delivery Time : 250-30 days

Packaging Details : export package

Description : SC320 construction site lift

Application : Transportation of man and material at building site

Material : Q355B cool roll steel plate

Processing : Cut by Laser, Processed by CNC machines in tool fixtures

Motor : VFD

Color : Yellow

Contact Now

Rack and pinion hoist construction lift SC320(BZ) KP-B17 SC320/320(BZ) KP-B18

Design

It is the truly modular rack and pinion hoist design, so the elevator drive devices and cars are generic and interchangeable.
Multiple choice of construction lifts car doors or ramps is available.
The modular and standardizing system makes the Kangbo construction elevators be flexible, efficient, safe, productive, low energy consumptive and ownership cost, making them the best choice for both construction and rental companies.

Production and Materials

KANGBO implements the true modular design of rack and pinion hoists, standardization and fine finishing of lifts parts and spare parts, and assembly line production. The material elevator components are versatile and universal.
The construction material elevator structural parts are made of 16Mn and Q355B high strength steel.

The construction lift cage roof is made by a full steel plate, and the edges are totally welded, to ensure no water leakage and high strength.

Technical Data

Item & Article No.	SC320(BZ) KP-B17, SC320/320(BZ) KP-B18
Payload capacity	3,200 kg per cage
Lifting speed	0–46 m/min.
Max. lifting height	450 m
Cage width (internal)	1.5 m
Cage length (internal)	3.2 m
Cage height (internal)	2.35 m
Motor control	FC control
Engine power	3x15 kw per cage
Gearbox	Helical reducer
Safety device type	centrifugal brake
Power supply range	380–500 V, 50 or 60 Hz, 3 phase
Mast section	square column 6506501508 mm with bolted rack
Rack module	8

Product Tags:

rack and pinion elevator

rack and pinion lift

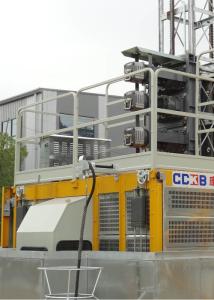

VFD Motor Rack And Pinion Elevator , Construction Site Lift Max Lifting Height 0–46 M/Min Images
