3 Doors Bridge 60 M / Min Construction Material Hoist

Name: 3 Doors Bridge 60 M Min Construction Material Hoist
Brand: KANGBO
Price: 1 USD

Brand Name : KANGBO

Model Number : Construction Material Hoist

Certification : TUV, CCC

Place of Origin : CHINA

MOQ : 1 set

Price : Negotiate

Payment Terms : T/T, L/C

Supply Ability : 150 sets per month

Delivery Time : 25-30 days

Packaging Details : Export package

name : Construction Material Hoist

Design : According to European Regulation

Doors : 3 Doors

Material : Q345B steel

Processing : Processed by CNC machines, robots

Color : Yellow Color

Contact Now

Yellow Color 3 Doors Construction Material Hoist

Construction Material Hoist Introduction

This product absorbs advanced technology at home and abroad, is novel in design, simple in operation and convenient to dismantle and repair. Its safety design and configuration is fully in conformity with national standards. It is mainly suitable for bridge, chimney, building and other high-rise building builders and cargo transportation, and can also be used in warehouses, wharfs and other places where vertical transportation needs to be used.

Optional Configuration

Rack and pinion elevator cage flap door as loading/unloading ramp.
Sliding Contact Line (Integrated Conductive Rail or Busbar) specially for rack and pinion lifts.
An intelligent elevator control system, Multi-function Control System, with functions of fault detect, display and alarm, and automatic cage landing/stop and floor selector, is available.
Automatic greasing machine for rack and pinion elevator is availble.

Technical Data

Item & Article No.	SC200BG, MP-B09; SC200/200BG, MP-B10
Payload Capacity	2000 KG per Cage
Lifting Speed	0–60 m/min.
Max. Lifting Height	450 m
Cage Size (internal)	3.2(Length)1.5(Width)2.35(Height) Meter per Cage
Cage Doors	3 Doors, Entry Door + Exit Door + Side Door
Motor Control	FC (Frequency Control)
Engine Power	2x23 KW per Cage
Gearbox	Helical Gearbox
Safety Device Type	Centrifugal Brake
Power Supply Range	380–500 V, 50 or 60 Hz, 3 Phase
Type of Mast	Square Column 650*650 mm with Bolted Rack
Length Mast Section	1.508 m
Rack Module	8

3 Doors Bridge 60 M / Min Construction Material Hoist

Product Tags:

rack and pinion hoist

rack and pinion lift

Quality 3 Doors Bridge 60 M / Min Construction Material Hoist wholesale

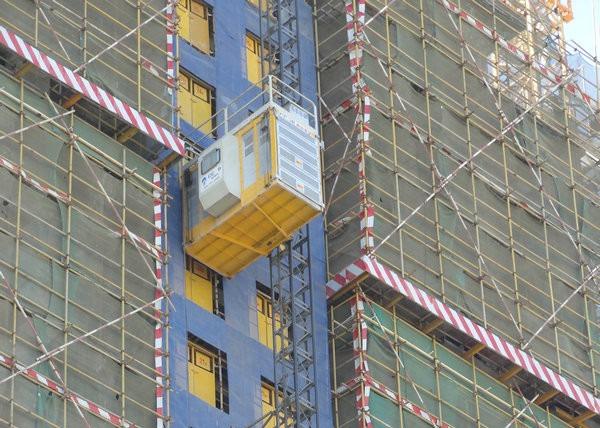

3 Doors Bridge 60 M / Min Construction Material Hoist Images
