Top Drive Rack Pinion High Speed Passenger Hoist VFD Single Cage
Detailed Information
| No. | ITEM | Unit | Parameter | Note |
| 1 | Rated Load | KG | 1000 | single cages |
| 2 | Rated Load when erecting and dismantling | KG | 1000 | single cages |
| 3 | Lifting speed | m/min | 0~54 | Retarder ratio 1:16 |
| 4 | Max. Height | m | 300 | |
| 5 | Cage diamension (L*W) | m*m | 3.2*15*2.5 | |
| 6 | Distance between foundation and cage bottom | m | 0.40 | |
| 7 | Wall tie distance | m | ≤9 | |
| 8 | Free end height | m | ≤9 | |
| 9 | Power supply | V | 380V±5% | |
| 10 | Motor Brand | | LSZ | |
| 11 | Motor power | KW | 2*15 | JC=25% |
| 12 | Inverter brand | | Schneider | |
| 13 | Inverter power | KW | 37 | |
| 14 | Rated current | A | 2*33 | |
| 15 | Safety device model | | SAJ30-1.4 | |
Product Description

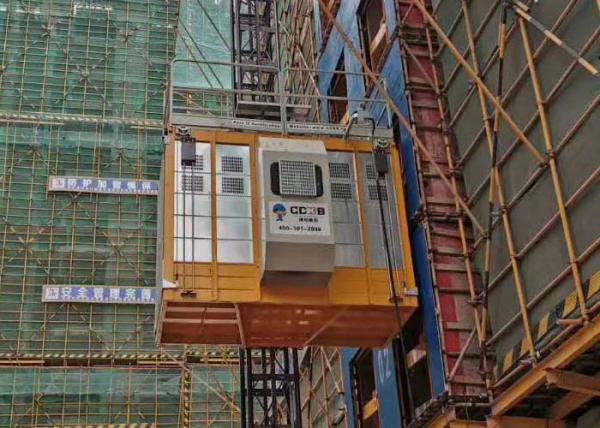

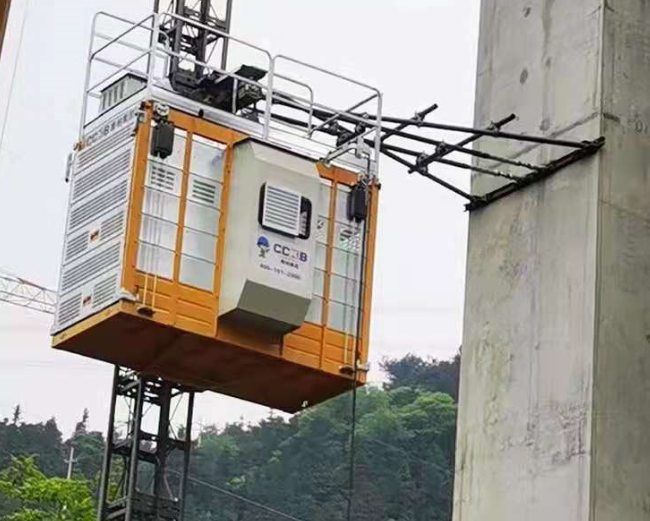

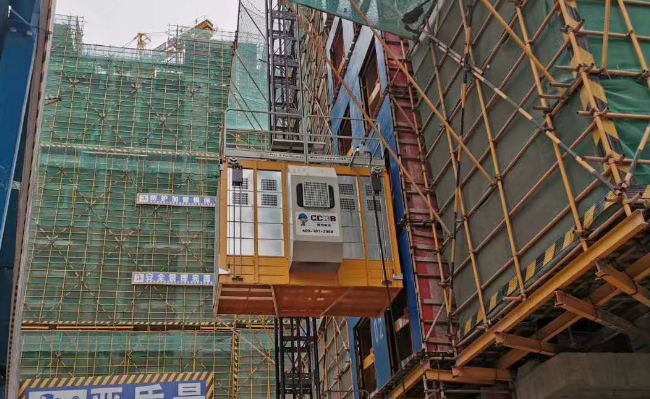

The SC100/100Construction lift is an external construction hoist with a top drive rack-and-pinion mechanism which is the new-generation product that is designed with advanced technology. Compared with traditional construction hoist,the new generation SC100/100 is more comfortable,safe,reliable and convenient for dismantling and maintenance with more reasonable and compact structure,strong and durable cages,attractive apperance and dellicate parts.
Feature
1. The SC100/100 Construction lift is equipped with a state-patented safety device which can brake automatically in case of accidental fall.
2. Comparing with traditional building hoists, it is attractive, light and is easy to handle, secure, applicable.
3. SC100/100 Construction passenger hoist is excellent in technical performance, more secure in operating mechanism, and more compact in structure.
4. The driver element on top of the cage is safe and reliable and convenient for maintenance.
5. It has simple electrical control system, convenient to be maintained and low failure rate;
6. With the advantages of reliable performance, safety, easy carrying, high adaptability, it can reduce operators’ work intensity.
