2T Payload 46M/Min FC Motor Rack Pinion Construction Site Hoist

Brand Name : KANGBO

Model Number : SC200BZ

Certification : TUV

Place of Origin : Xiamaen, China

MOQ : 1 unit

Price : in USD

Payment Terms : T/T, L/C

Supply Ability : 300 units per month

Delivery Time : 25 days after receiipt of down payment

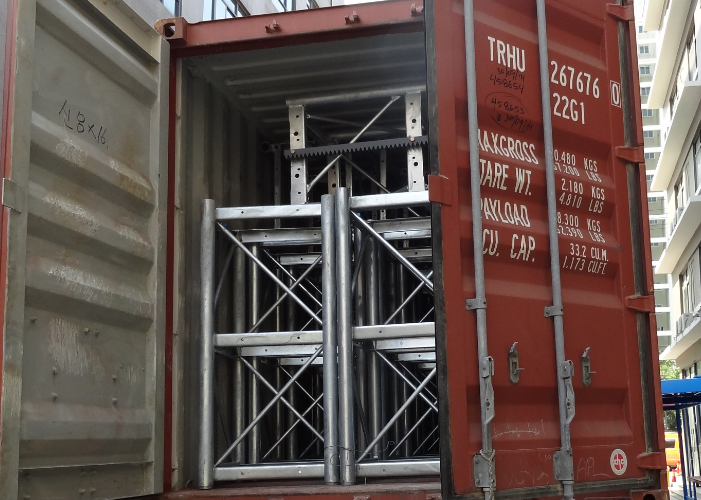

Packaging Details : A 40'HQ container can load one unit of 50 meter high hoist

Item : SC200, 2 tons

Purpose and uses : Vertical transportation of man and materials

Design : Modular designed as per EU regulations

Material : Q355B steel

Processing procedure : Processed by CNC machines and robots

Finishing : Sandblasting and Baking Finish

Contact Now

SC200BZ 2 ton capacity 0-46m speed FC motor Rack Pinion Construction Hoist

Overview

Truly modular, the drive devices and cages are generic and interchangeable.

Available in a multiple choice of doors or ramps.
The modular and standard system offers flexibility, efficiency, low energy consumption and low cost of ownership, making it the ultimate choice for both construction and rental companies.
A cage top crane available to facilitate the assembly.
Frequency control makes starting and stopping very smoothly, with low starting current and much less wear and tear.

Features
* Apply high efficiency and energy-saving helical gearbox.
* Racks bolted at the center of mast sections, with less partial load torque of cages, make the machine run more stably and smoothly.
* Apply non-eccentric rollers, so, need to adjust the rollers after installs. That means easier installation and less errors. * Cage roof made by a full tread plate with edges totally welded. No water leakage at cage roof.
* With bigger and stronger car frame.
* LED Interior Car Lighting.
* Interlocked roof door.
* Drop test facility with remote.
* A frequency control (FC), with closed-loop.

Technical Data

Payload capacity 2,000 kg
Lifting speed 0–46 m/min.
Max. lifting height 450 m
Cage width (internal) 1.5 m
Cage length (internal) 3.2 m
Cage height (internal) 2.35 m
Cage doors Modular doors, entrance door and discharge door can be exchanged.
Motor control FC control
Engine power 2x15 kw
Gearbox Helical reducer
Safety device type centrifugal brake
Power supply range 380–500 V, 50 or 60 Hz, 3 phase
Type of mast square column 650*650 mm with bolted rack
Length mast section 1.508 m
Rack module 8
* Be equipped with a frequency control unit (FC), with closed-loop.
