SC300 SC300/300 Rack And Pinion Lift With Third Door At Long Side Of Cabin

Name: SC300 SC300300 Rack And Pinion Lift With Third Door At Long Side Of Cabin
Brand: KANGBO
Price: 1 USD

Brand Name : KANGBO

Model Number : Building Site Rack Pinion Type Lift SC300BG MP-B15, SC300/300BG MP-B16

Certification : TUV, CCC

Place of Origin : CHINA

MOQ : 1 set

Price : Negotiate

Payment Terms : L/C, T/T

Supply Ability : 150 sets per month

Delivery Time : 25-30 days

Packaging Details : Export package

Item name : Building site hoist rack and pinion elevator

Design : As per European Regulation EN 12159:2012, EN 60204-1:2006/A1:2009.

Material : Q355B steel plate

Production : Standardized production, Processed by CNC machines, Laser, Robots in assembly line

Drive mode : VFD (Variable Frequency Drive)

Finishing : Sandblasting, Painted or Galvanised

Contact Now

Rack And Pinion Lift SC300, SC300/300 With Third Door At Long Side Of Cabin

Configuration
A small crane for conenient assembly of the construction lift.

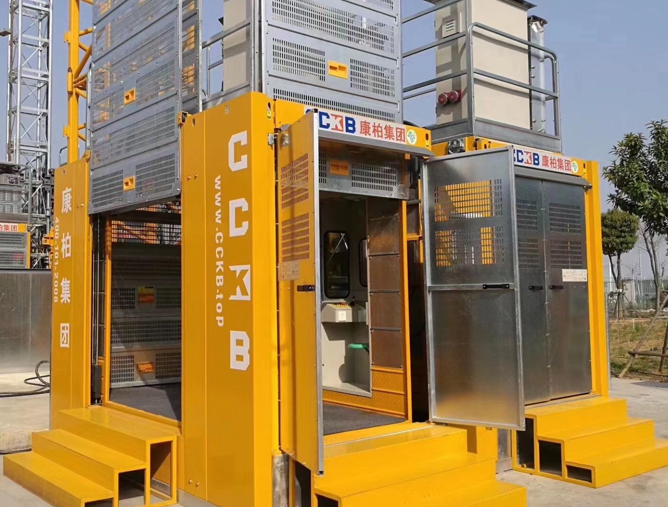

There is the additional 'C' door at the long side of cab for convenient loading/unloading.
Single or twin lift cabin configuration is available.
The construction rack and pinion elevators are Variable Frequency Drive (VFD), with low starting current and much less wear and tear, very smooth starting and stopping.
Manual or Automatic Controls of the lift is optional.
Lighting inside this construction elevator car is LED ceiling lamp
The construction material hoist cage roof doors are equipped with electromechanical interlocking.
Equipped with drop test facility with remote control.
A frequency control unit (FC), with closed-loop, be equipped.

Technical Data

Item & Article No.	SC300BG, MP-B15; SC300/300BG, MP-B16
Payload Capacity	3,000 KG per Cage
Lifting Speed	0–60 m/min.
Max. Lifting Height	250/400 m*
Cage Width (Internal)	1.5 m
Cage Length (Internal)	3.2 m
Cage Height (Internal)	2.35 m
Cage Doors	3 Doors, Entry Door + Exit Door + Side Door
Motor Control	FC (Frequency Control)
Engine Power	3x23 KW per Cage
Gearbox	Helical Gearbox
Safety Device Type	Centrifugal Brake
Power Supply Range	380–500 V, 50 or 60 Hz, 3 Phase
Mast Section	Square Column 6506501508 mm with Bolted Rack
Rack module	8
* Increased lifting height on request. 250 m with step-up transformer only. 400 m with step-up/step-down transformer.
