Rack And Pinion Heavy Payload Construction Site Elevator SC250BG KP-B19

  • 1
  • 2

Brand Name : KANGBO

Model Number : SC250BG KP-B19

Certification : TUV

Place of Origin : CHINA

MOQ : 1 set

Price : In U S dollar

Payment Terms : T/T, L/C

Supply Ability : 300 set

Delivery Time : 30 days afterd receipt of down payment or L/C

Packaging Details : Export package

Description : Construction site rack and pinion high speed heavy payload elevator

Model : SC250(BG) KP-B19

Application : Vertical transportation of man and materials in construction sites

Work mode : Mast climbing pinion drive

Motor control : Variable Frequency Drive (VFD)

Design : Modular design and according to EU regulations

Material : Q355B Steel

Finishing : Sandblasting and paint, galvanised

Contact Now

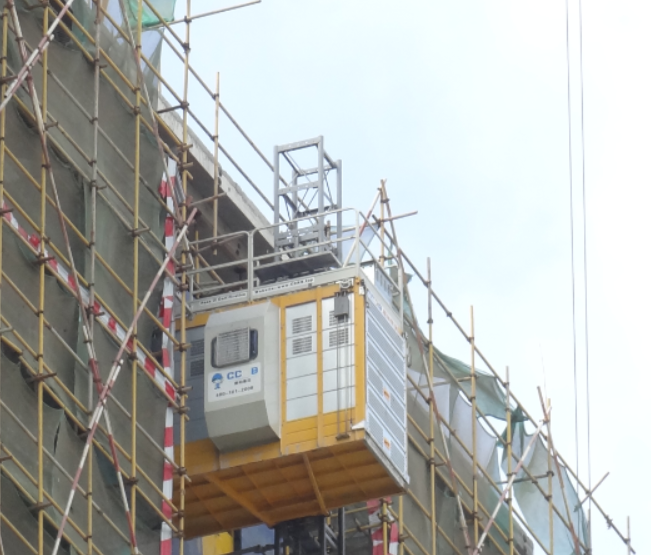

Construction site hoist rack and pinion high speed heavy payload SC250BG KP-B19

Production and Materials
KANGBO implements the true modular design of rack and pinion hoists, standardization and fine processing of lifts parts and components, and assembly line production.

The construction elevator components are standardized and universal.
Main structure frame are made of 16Mn and Q355B high strength cold roll steel plate, cut by laser, process by CNC machines in tool fixtures, welded by robots.
The construction lift cage roof is made of one piece of steel plate, and its edges are totally welded by robot, to ensure never water leakage and high strength of the elevator car.

Standard Configuration
There is a small crane for conenient installation of the elevator.
In single cage configuration.
The construction site rack and pinion type elevators are Variable Frequency Drive (VFD), with low starting current, very smooth starting/stopping and so there is much less wear and tear.

Technical Data

Item & Article No. SC250(BG) KP-B19
Payload Capacity 2,500 KG per Cage
Lifting Speed 0–80 m/min with full load
Max. Lifting Height 250/450 m*
Cage Size (internal) 3.2(Length)*1.5(Width)*2.35(Height) Meter per Cage
Motor Control FC control
Engine Power 3x38 KW per Cage
Gearbox Helical Reducer
Safety Device Type Centrifugal Brake
Power Supply Range 380–500 V, 50 or 60 Hz, 3 Phase
Type of Mast Square Column 650*650 mm with Bolted Rack
Length Mast Section 1.508 m
Rack Module 8
* Increased lifting height on request. 400 m with step-up/step-down transformer.
Optional Configuration
Power Supply Slide Contact Line System (Busbar)
Floor Selection Multi-functional Control System (Floor selector, Automatic Landing, Error Detection and Display, etc.)
TUV proved according to European Regulation EN 12159:2012, EN 60204-1:2006/A1:2009.
